Pharmaceutical purified water
Publisher: Suzhou Huanke Pharmaceutical Equipment Technology Co., Ltd Time：2025-03-05 11:28:07 Number of clicks：10 Close

The purified water equipment produced and manufactured by Suzhou Huanke Pharmaceutical Equipment Technology Co., Ltd. is widely used in the fields of proteins, antigens, antibodies, vaccines, peptides, enzymes, biotechnology, biologics, drug research and development, therapeutics, biomanufacturing, cell biology, clinical trials, genomics/genetics, personalized medicine, stem cell research, biotechnology, bioengineering, nanotechnology, bioanalysis, biofuels, and bioinformatics. For specific equipment, please refer to the Huanke case study.

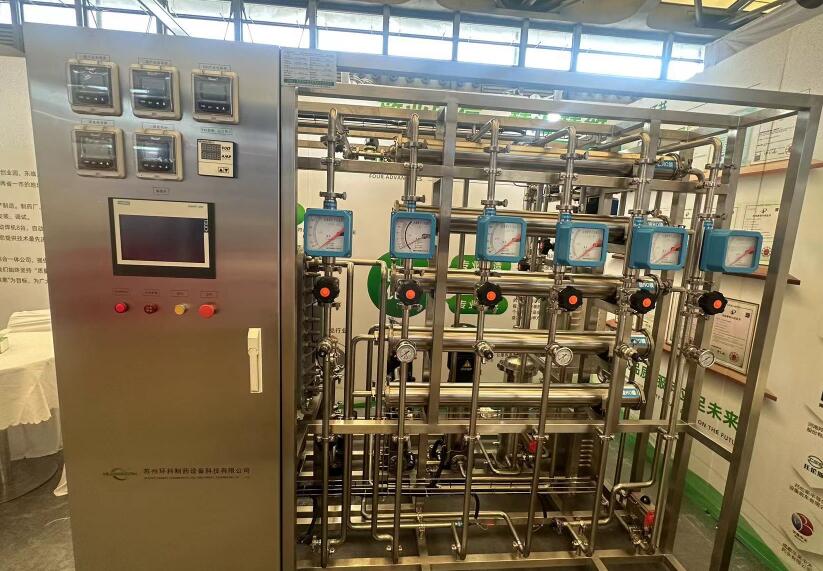

The purified water equipment of Suzhou Huanke Pharmaceutical Equipment Technology Co., Ltd. has the following characteristics:
1. Adopting PLC+touch screen fully automatic control mode
2. The touch screen has a process flow screen, and dynamic monitoring screens for each water pump, switch, and liquid level.
3. There is an alarm recording function, which will sound and light an alarm if there is an abnormality.
4. The automatic mode is a one click start, which is easy and convenient to operate.
5. The system login permission or level is set to level 3 to prevent accidental operations.
6. The first level water quality is set with qualified water and unqualified water, and unqualified water is directly discharged. The second and later sections are set with qualified water and unqualified water, and unqualified water is discharged to the previous section to ensure stable and safe water quality
7. All dead corners of pipelines should not exceed 3D, and the system can achieve full emptying. All horizontal pipelines have a slope of not less than 1% to achieve full discharge during cleaning. The lowest point of the water production equipment is marked and sanitary valves are installed. Diaphragm valves on horizontal pipelines are installed at a 45 degree angle.
8. The material before the purified water storage tank is SUS304, the material behind the tank is SUS316L, and the material for the injection water and pure steam pipelines is 316L.
9. Valves that come into contact with purified water, injection water, and pure steam are all diaphragm valves with PTFE or EPDM valve plates. The installation angle is conducive to draining stored water. The purified water valve is resistant to pasteurization, the injection water valve is resistant to 121 ℃ superheated water disinfection, and the pure steam valve is resistant to 0.4MPa saturated steam
10. Sampling points and valves should be equipped for each step of water quality change from raw water to injection water. All sampling points and valves should be of sanitary grade structure, and all stainless steel pipes should be treated with acid pickling and passivation
11. All sealing ring materials are made of pharmaceutical grade silicone rubber, and all components, pipelines, gaskets, etc. that come into contact with disinfectant hot water must withstand the disinfection temperature
12. Pipeline welding: The weld seam is smooth and flat, without welding slag or burrs; The welding seams of the equipment body shall undergo a certain proportion of X-ray inspection according to regulations; The inner surface of pipes that come into contact with raw water, pure steam, and injection water shall be subjected to electropolishing treatment.
13. All instruments and probes that come into contact with purified water, injection water, and pure steam must use sanitary connection methods and will not use threaded connections
14. Purified water and injection water return flow meter and distribution pump frequency conversion linkage
15. The online conductivity analysis instrument has temperature compensation function, which can achieve abnormal emissions when the conductivity exceeds the standard. All other instruments and meters must undergo calibration and provide calibration certificates.
16. All instruments, meters, valves, etc. installed on the circulation pipeline can withstand the temperature of the corresponding disinfection method, and after disinfection, can ensure
